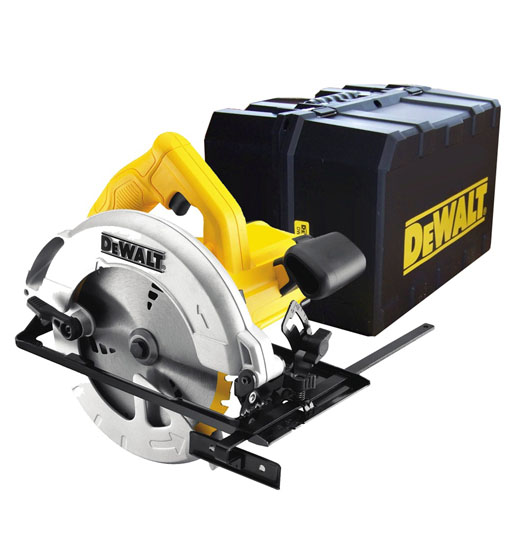

Compact; Lightweight; Easy to use a circular saw with 65mm depth of cut
High power 1350W motor gives an increased cutting performance
Cutaway inner guard gives an improved line of sight to cutting line
Dust blower clears dust and debris from the cut line
Efficient dust extraction port to minimize airborne dust particles when connected to a dust extraction unit
Direct compatibility with DEWALT AirLock system for easy; secure connection to extraction hose Power Input: 1350 Watts
Power Output: 850 Watt
No Load Speed: 5500 rpm
Blade Diameter: 184 mm
Blade Bore: 16 mm
Bevel Capacity: 48°
Max. Depth of Cut at 90§: 65 mm
Max. Depth of Cut at 45§: 42 mm
Weight: 3.7 kg
Length: 286 mm
Height: 226 mm
Hand/Arm Vibration: 2.5 m/s²
Uncertainty K 1 (Vibration): 1.5 m/s²
Sound Pressure: 88 dB(A)
Sound Pressure Uncertainty: 3 dB(A)
Sound Power: 99 dB(A)
Sound Power Uncertainty: 3 dB(A)
