Capacity 90°:69 x 130 mm
Maximum Output Power:1650 W
No load speed:4800 min?¬π
Capacity 45°:69 x 85 mm
Capacity 45° left:53 x 95 / 35 x 130 mm
Max. Bevel Range (Left):45 / 0 º
Max. Mitre Range (Left):45 / 45 º
Blade:260 x 30 mm
Power Supply Cord:2,5 m
Dust Bag:Yes
Set Plate:1
Push stick: Yes
Sound Power Level (LWA):107 dB(A)
Sound Pressure Level (LpA):93 dB(A)
Noise Uncertainty (K Factor):3 dB(A)
Vibration Level (3 axes):≤ 2,5 m/s²
Vibration Uncertainty (K Factor):1,5 m/s²
Weight Without Cable (EPTA-Procedure 01/2003):14,3 kg
Product Dimensions (L x W x H)::530 x 476 x 535 mm

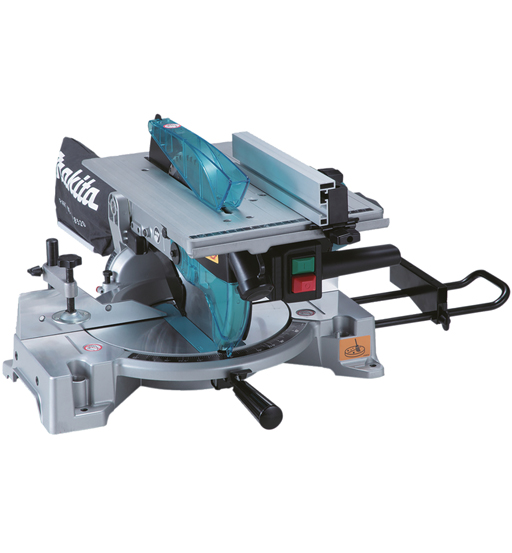

Vacuum cleaner connection √ò in / out:32/37 mm Miter saw and table saw packed in one tool for great versatility
Lightweight for easy transport to job sites
Anti-restart switch protects user from accidental start
Anti-restart switch protects user from accidental start
Powerful motor allows easy rip cutting
Electric brake for maximum productivity and increased operator safety
Dust bag for a cleaner work environment
